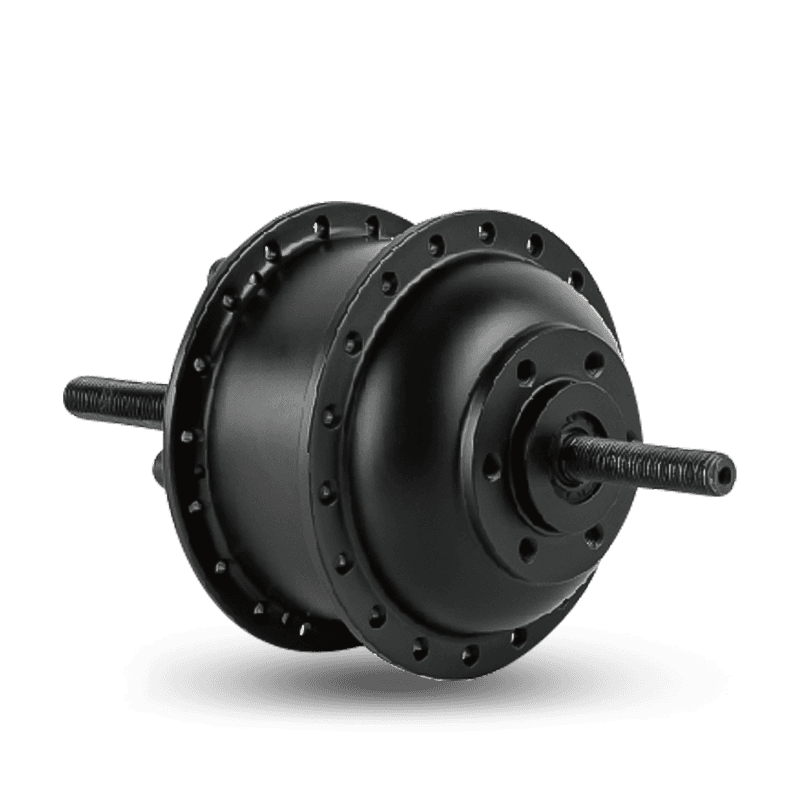

HT MINI 250W Front Hub Motor

The HT MINI front hub motor is designed specifically for urban bicycles and is one of the smallest outer rotor hub motors on the market. With its compact and lightweight structure, it weighs only 1.95kg but can achieve a rated power of 220W, with a torque of over 30Nm. Its rated power can reach 250W, and the stall torque can reach 40Nm. Additionally, the motor features an outer rotor structure, which, compared to smaller inner rotor motors, has less error accumulation, higher structural strength and stability, and is more durable.

Key Parameter
Motor structure: Rated Voltage(V): Rated Power(W):
Outrunner Hub Motor 200-250 36-48
Peak Torque(N.m.): Weight(KG): OLD (mm):
40 1.95(220w) 100
detail information
  • HT MINI 250W Front Hub Motor
  • HT MINI 250W Front Hub Motor
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Product Parameters Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Drawing Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Contact Us

Core Data

Rated power 200-250
Rated voltage 36-48
Wheel diameter 20-28
Speed range 25-32
Maximum torque 40
Gear Ratio 5
Weight (KG) 1.95(220w)

Installation Parameters

Brake Disc brake
Torque sensor cassette  No
Cabling Route Axle Side Right
Spoke hole 2-18-Ф3.2
Waterproof rating IP54(Up to IP65)
Flywheel/Sprocket wheel /
Certificates TUV/EN15194/RoHS

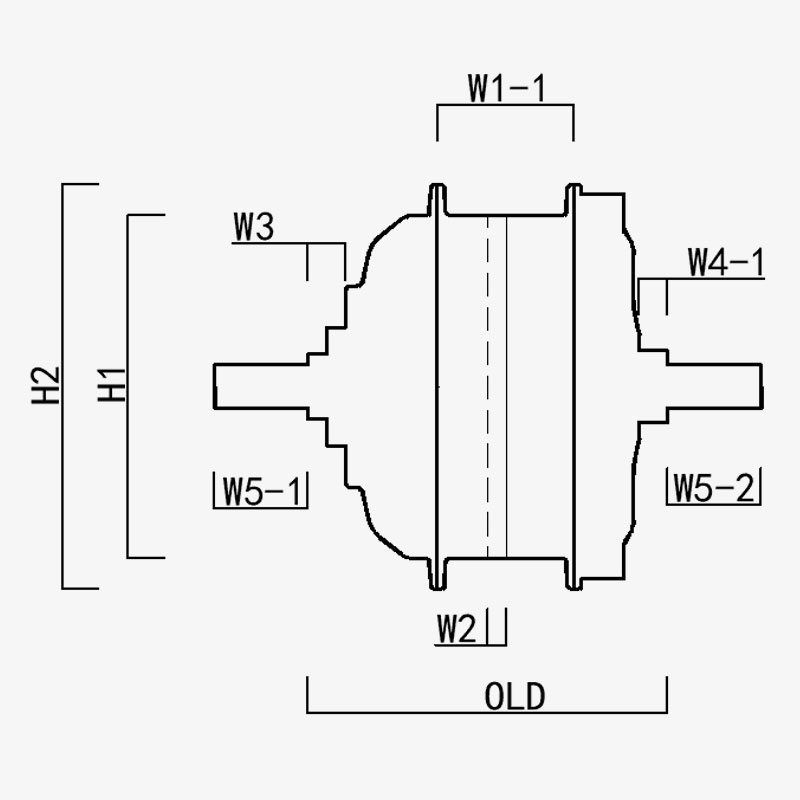

H1/ OD: 95.5
H2/Motor OD: 112.5
W1(-1/-2): 38
W2: 5
W3: 10.5
W4(-1/-2): 8
W5(-1/-2): 26
OLD: 100
Axle Length: 152
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd.
contact us
  • Submit and send
WHAT SETS US APART
  • The motor has an outer diameter of 95mm and weighs only 1.95kg. It is the smallest outer rotor motor with a stall torque of up to 40NM. A ebike partner.

  • Patented plastic steel gear: 5 times the torque of nylon gear; life span is greater than 40,000 kilometers; lower after-sales

  • Outer rotor motor: more stable structure and lower failure rate than inner rotor

WHO ARE WE More than 20 years of production experience.

Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. was established in 1995. For more than 20 years, we have been committed to the casting and processing of miniature DC motors, hub motors for electric vehicles and motorcycles, and aluminum and magnesium alloys for electric vehicles. At the same time, we have a complete ISO9001 quality control system, mature management system and advanced manufacturing and testing equipment.

HENTACH has an area of more than 9,000 square meters, with a construction area of 5,000 square meters. Currently we have more than 60 sets of various internal production equipment including 500 tons die-casting machines, precision CNC machine tools, laser marking machines, micro-arc oxidation, etc., and another two sets of electric vehicle motor test benches.

HENTACH aims to pursue higher quality and innovation products. With rich experience in motor manufacturing, we are confident with our motor quality as we always use the materials and our own patented nylon-steel gear. We used to set up a price for the customers who use our motors for over 30,000 miles. In the end we find over 50 motors that are used by the customers for over 30,000 miles and some of them even reach 50,000 miles. We appreciate for those customers who are always trust our products, which also encourage us to keep exploring and innovating better motor with  quality.
