E-FAT / E-CARGO

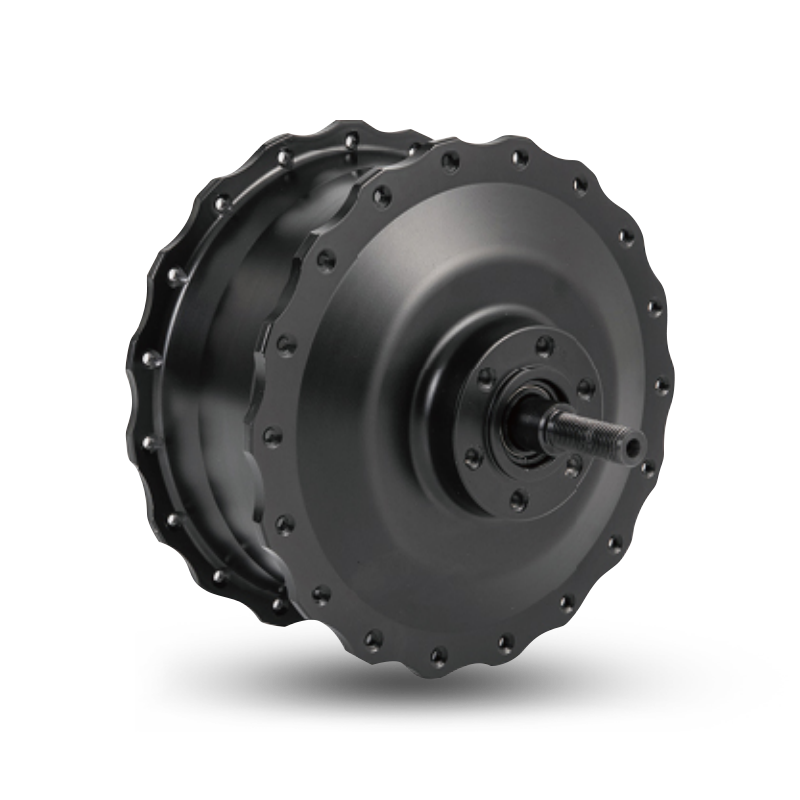

S-Type Pro F1500 Front Hub Motor

The S-Type Pro F1500 front hub motor, designed for E-Carao and E-Fat bikes, offers rated power from 750W to 1500W and a peak torque of 145Nm. lt enhances low-speed traction and climbing ability in challenging terrain, addressing power deficiencies in high-load applications. Equipped with HENTACH's patented plastic-steel gears-five times stronger than nylon gears-it supports motors rated above 1000W, where traditional nylon gears would wear out quickly under sustained torques above 100Nm.

Key Parameter
Motor structure: Rated Voltage(V): Rated Power(W):
Geared Outrunner Hub Motor 48-60 750-1500
Peak Torque(N.m.): Weight(KG): OLD (mm):
145 5.5 190
detail information
  • S-Type Pro F1500 Front Hub Motor
  • S-Type Pro F1500 Front Hub Motor
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Product Parameters Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Drawing Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Contact Us

Core Data

Rated power 750-1500
Rated voltage 48-72
Wheel diameter 20-26
Speed range 25-65
Maximum torque 145
Gear Ratio 5
Weight (KG) 5.5

Installation Parameters

Brake Disc Brake
Torque sensor cassette  No
Cabling Route Axle Side Right
Spoke hole 2-18-Ф3.5
Waterproof rating IP54(Up to IP65)
Flywheel/Sprocket wheel /
Certificates TUV/EN15194/RoHS

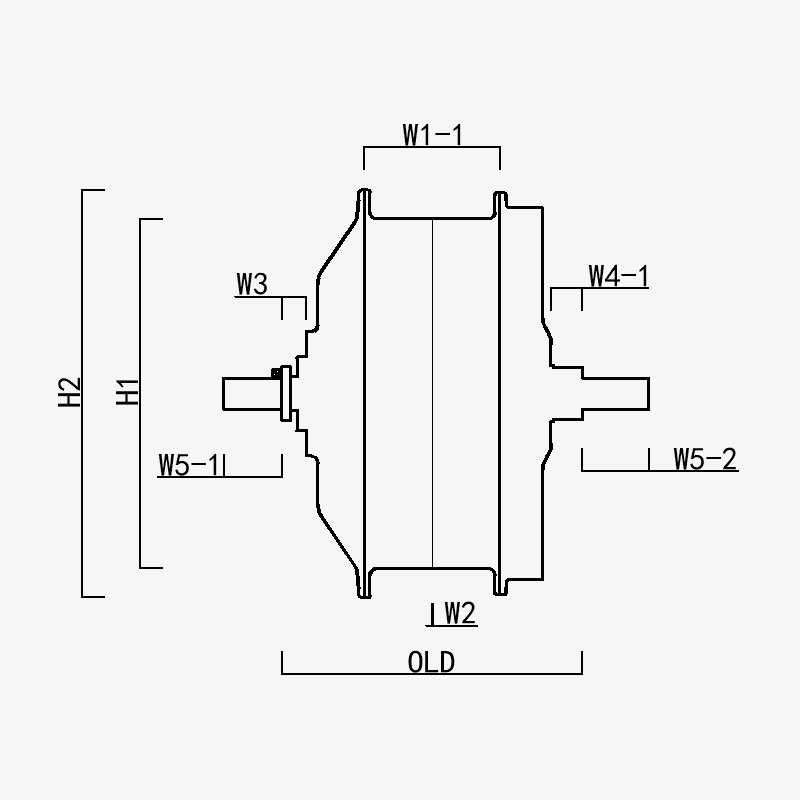

H1/ OD: 157
H2/Motor OD: 183
W1(-1/-2): 60.9
W2: 0
W3: 11
W4(-1/-2): 14.1
W5(-1/-2): 26/30
OLD: 135
Axle Length: 191
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd.
contact us
  • Submit and send
WHAT SETS US APART
  • Powerful front drive motor, 135mm gear opening, rated power up to 1500w.

  • Patented plastic steel gear: 5 times the torque of nylon gear; life span greater than 40,000 kilometers; lower after-sales

  • Stall torque up to 145NM, specially designed for efat/Cargo.

WHO ARE WE More than 20 years of production experience.

Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. was established in 1995. For more than 20 years, we have been committed to the casting and processing of miniature DC motors, hub motors for electric vehicles and motorcycles, and aluminum and magnesium alloys for electric vehicles. At the same time, we have a complete ISO9001 quality control system, mature management system and advanced manufacturing and testing equipment.

HENTACH has an area of more than 9,000 square meters, with a construction area of 5,000 square meters. Currently we have more than 60 sets of various internal production equipment including 500 tons die-casting machines, precision CNC machine tools, laser marking machines, micro-arc oxidation, etc., and another two sets of electric vehicle motor test benches.

HENTACH aims to pursue higher quality and innovation products. With rich experience in motor manufacturing, we are confident with our motor quality as we always use the materials and our own patented nylon-steel gear. We used to set up a price for the customers who use our motors for over 30,000 miles. In the end we find over 50 motors that are used by the customers for over 30,000 miles and some of them even reach 50,000 miles. We appreciate for those customers who are always trust our products, which also encourage us to keep exploring and innovating better motor with  quality.
