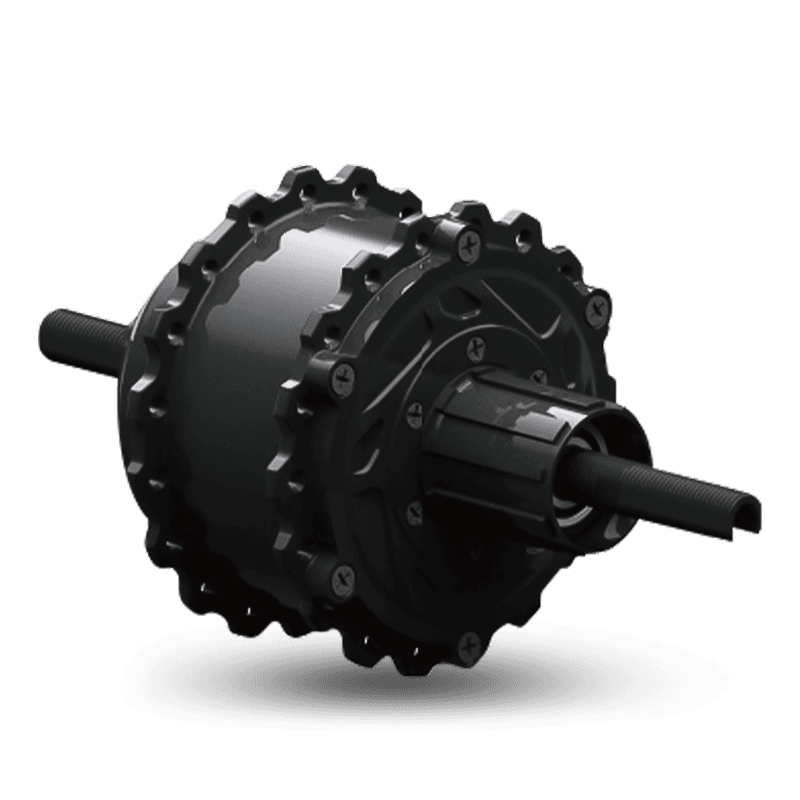

HT MINI2 Cassette Rear Hub Motor

The HT MINI2 cassette hub motor is designed for city and road bikes, making it the smallest external rotor hub geared motor on the market. Compatible with 36V/48V, and weighs only 2.03kg (with cassette) or 1.8kg (thread on), the patented plastic-steel gear ensures a lightweight riding experience. The motor offers a rated power of 220W with over 30Nm of torque, reaching up to 250W and 40Nm of stall torque. Its external rotor design reduces cumulative errors, enhancing strength and durability compared to the inner rotor design.

Key Parameter
Motor structure: Rated Voltage(V): Rated Power(W):
Outrunner Hub Motor 180-200 36-48
Peak Torque(N.m.): Weight(KG): OLD (mm):
30 2.03(With Cassette) 142
detail information
  • HT MINI2 Cassette Rear Hub Motor
  • HT MINI2 Cassette Rear Hub Motor
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Product Parameters Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Drawing Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Contact Us

Core Data

Rated power 180-200
Rated voltage 36-48
Wheel diameter 20-28
Speed range 25-38
Maximum torque 30
Gear Ratio 5
Weight (KG) 2.03(With Cassette)

Installation Parameters

Brake disc brake
Torque sensor cassette No
Cabling Route Axle Central Right
Spoke hole 2-18-Ф3.2
Waterproof rating IP54(Up to IP65)
Flywheel/Sprocket wheel KAFI 7-10 speed
Certificates TUV/EN15194/RoHS

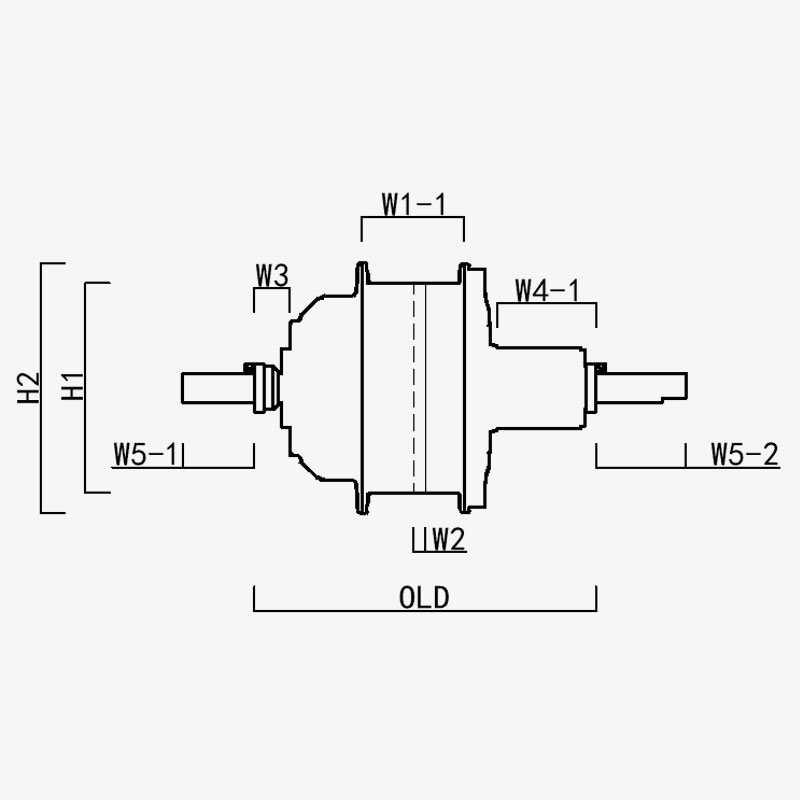

H1/ OD: 88
H2/Motor OD: 105
W1(-1/-2): 43
W2: 0
W3: 15
W4(-1/-2): 42.5
W5(-1/-2): 30/39
OLD: 142
Axle Length: 211
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd.
contact us
  • Submit and send
WHAT SETS US APART
  • The motor has an outer diameter of 85mm, and can be used with a 7-speed rotary flywheel (weighing only 1.8kg) and a 10-speed cassette flywheel (weighing 2.03kg). It is the smallest outer rotor motor with a stall torque of up to 30NM. A ebike partner.

  • Patented plastic steel gear: 5 times the torque of nylon gear; life span greater than 40,000 kilometers; lower after-sales

  • Outer rotor motor: more stable structure and lower failure rate than inner rotor

WHO ARE WE More than 20 years of production experience.

Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. was established in 1995. For more than 20 years, we have been committed to the casting and processing of miniature DC motors, hub motors for electric vehicles and motorcycles, and aluminum and magnesium alloys for electric vehicles. At the same time, we have a complete ISO9001 quality control system, mature management system and advanced manufacturing and testing equipment.

HENTACH has an area of more than 9,000 square meters, with a construction area of 5,000 square meters. Currently we have more than 60 sets of various internal production equipment including 500 tons die-casting machines, precision CNC machine tools, laser marking machines, micro-arc oxidation, etc., and another two sets of electric vehicle motor test benches.

HENTACH aims to pursue higher quality and innovation products. With rich experience in motor manufacturing, we are confident with our motor quality as we always use the materials and our own patented nylon-steel gear. We used to set up a price for the customers who use our motors for over 30,000 miles. In the end we find over 50 motors that are used by the customers for over 30,000 miles and some of them even reach 50,000 miles. We appreciate for those customers who are always trust our products, which also encourage us to keep exploring and innovating better motor with  quality.
