E-city

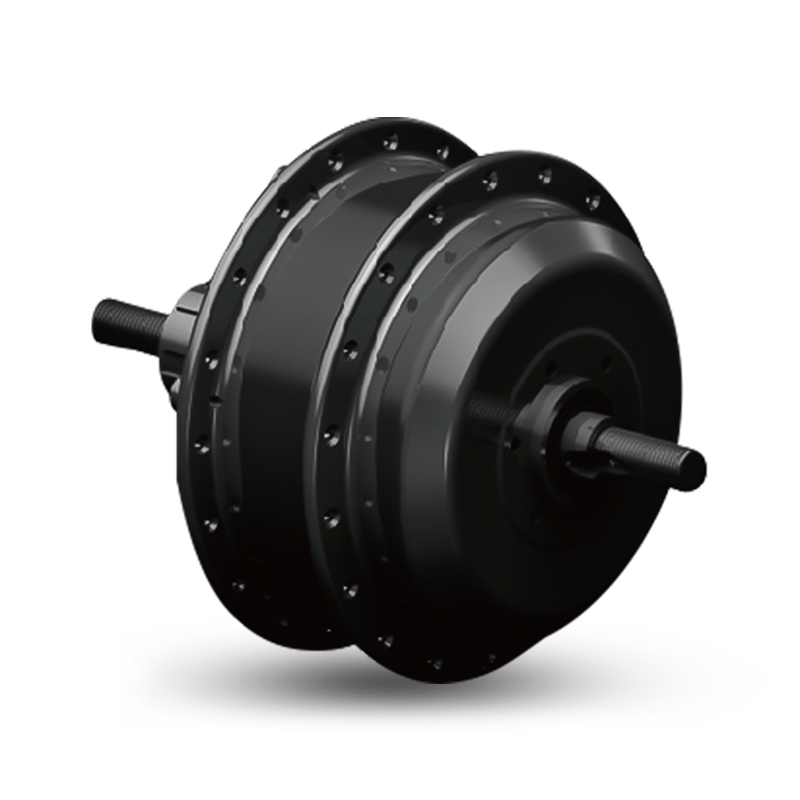

J-TYPE R350 ECO Rear Hub Motor

The J-TYPE R350 ECO rear hub motor is designed for lightweight Cargo and e-city. With a 250W rated power limitation, it features HENTACH’s latest patented motor structure technology, achieving 86% efficiency—surpassing the industry average of 81%. The widened high-efficiency platform boosts energy utilization by 140%, significantly reducing energy consumption and extending range while lowering battery weight and cost.
Weighing only 2.8kg (with cassette), it delivers over 55Nm of torque, the performance in the 250W category. The 142mm OLD and left-side cable routing optimize cable management, enhancing stability and durability.

Key Parameter
Motor structure: Rated Voltage(V): Rated Power(W):
Outrunner Hub Motor 250-350 36-48
Peak Torque(N.m.): Weight(KG): OLD (mm):
>55NM 2.8(With Cassette) 142
detail information
  • J-TYPE R350 ECO Rear Hub Motor
  • J-TYPE R350 ECO Rear Hub Motor
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Product Parameters Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Drawing Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Contact Us

Core Data

Rated power 250-350
Rated voltage 36-48
Wheel diameter 20-28
Speed range 25-45
Maximum torque >55NM
Gear Ratio 9.58
Weight (KG) 2.8(With Cassette)

Installation Parameters

Brake disc brake
Torque sensor cassette No
Cabling Route Left Axle Side Outlet/Left Side of Axle
Spoke hole 2-18-Ф3.2
Waterproof rating IP54(Up to IP65)
Flywheel/Sprocket wheel KAFI 7-12 Speed/Cassette 7-12 Speed
Certificates TUV/EN15194/RoHS

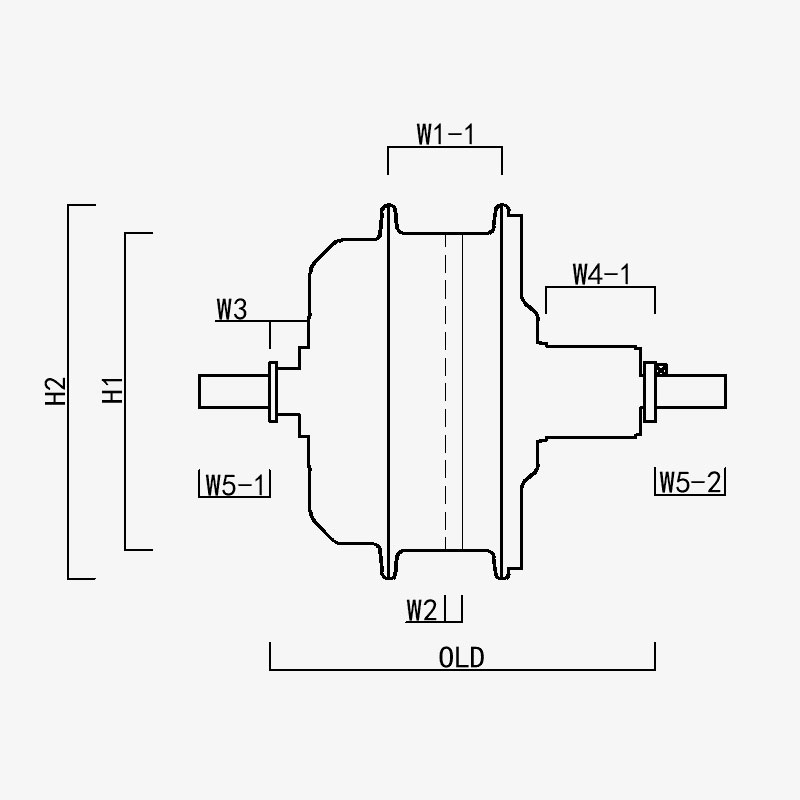

H1/ OD: 117.5
H2/Motor OD: 138.5
W1(-1/-2): 42
W2: 6.5
W3: 14.5
W4(-1/-2): 40.5
W5(-1/-2): 26
OLD: 142
Axle Length: 195
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd.
contact us
  • Submit and send
WHAT SETS US APART
  • Motor efficiency is greater than 86%, and the torque is greater than 50NM.

  • The innovative motor structure, a 1.4 times higher efficiency platform is wider, and the same battery life can be increased by 10-15%.
    Invention of patented plastic steel gear: 5 times the torque of nylon gear; life is greater than 40,000 kilometers; lower after-sales

  • External rotor motor: more stable structure than the inner rotor, lower failure rate

WHO ARE WE More than 20 years of production experience.

Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. was established in 1995. For more than 20 years, we have been committed to the casting and processing of miniature DC motors, hub motors for electric vehicles and motorcycles, and aluminum and magnesium alloys for electric vehicles. At the same time, we have a complete ISO9001 quality control system, mature management system and advanced manufacturing and testing equipment.

HENTACH has an area of more than 9,000 square meters, with a construction area of 5,000 square meters. Currently we have more than 60 sets of various internal production equipment including 500 tons die-casting machines, precision CNC machine tools, laser marking machines, micro-arc oxidation, etc., and another two sets of electric vehicle motor test benches.

HENTACH aims to pursue higher quality and innovation products. With rich experience in motor manufacturing, we are confident with our motor quality as we always use the materials and our own patented nylon-steel gear. We used to set up a price for the customers who use our motors for over 30,000 miles. In the end we find over 50 motors that are used by the customers for over 30,000 miles and some of them even reach 50,000 miles. We appreciate for those customers who are always trust our products, which also encourage us to keep exploring and innovating better motor with  quality.
