eMTB / E-cargo

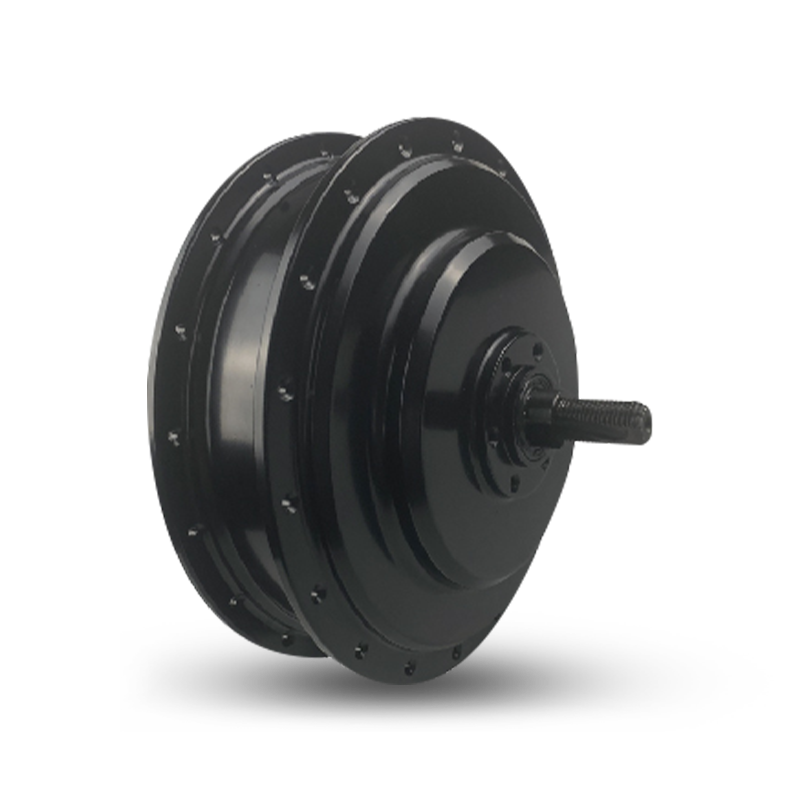

E-Type Pro RF750 Rear Hub Motor

The E-Type Pro RF750 Rear Hub Motor is designed for E-Cargo and E-MTB bikes, compatible with 7-speed thread on freewheel and a 135mm OLD. The rated power is 750W with over 85Nm of torque, handling high loads and complex terrains with ease. Equipped with patented plastic-steel gears, the motor provides 5 times the torque capacity of nylon gears, lasting over 40,000 km and significantly reducing maintenance costs. Whether on steep hills, rugged trails, or heavy cargo transport, it delivers exceptional climbing ability and instant acceleration.

Key Parameter
Motor structure: Rated Voltage(V): Rated Power(W):
Rear-Drive Hub Motor 350-750 36-48
Peak Torque(N.m.): Weight(KG): OLD (mm):
85 5.5 137
detail information
  • E-Type Pro RF750 Rear Hub Motor
  • E-Type Pro RF750 Rear Hub Motor
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Product Parameters Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Drawing Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Contact Us

Core Data

Rated power 350-750
Rated voltage 36-48
Wheel diameter 20-28
Speed range 25-38
Maximum torque 85
Gear Ratio 5.27
Weight (KG) 5.5

Installation Parameters

Brake Disc brake
Torque sensor cassette  No
Cabling Route Axle Side Left
Spoke hole 2-18-Ф3.2
Waterproof rating IP54(Up to IP65)
Flywheel/Sprocket wheel Rotary 7-speed
Certificates TUV/EN15194/RoHS

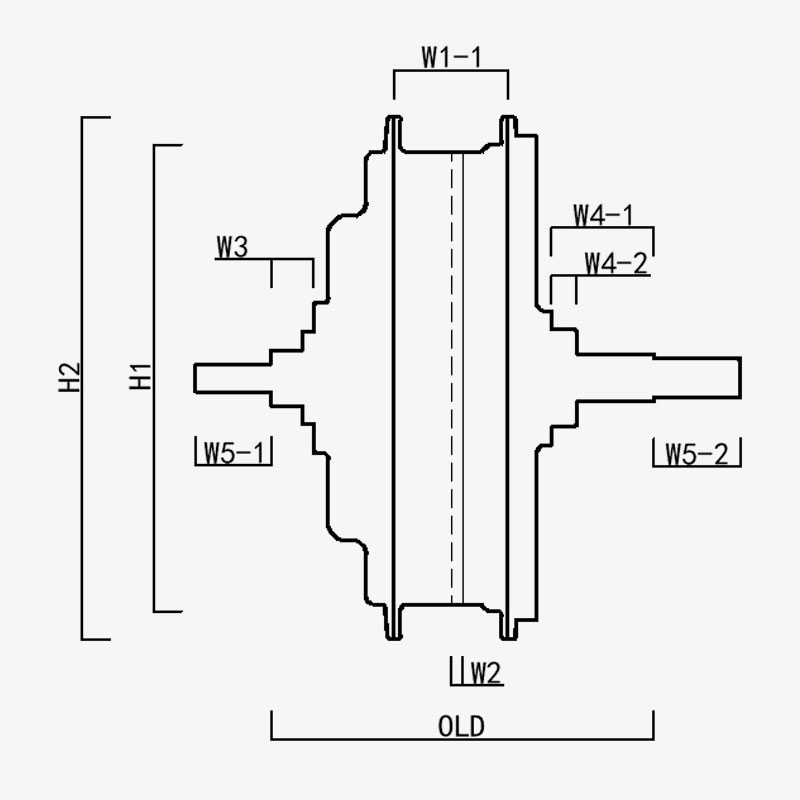

H1/ OD: 167
H2/Motor OD: 187
W1(-1/-2): 40.8
W2: 4.15
W3: 15.2
W4(-1/-2): 37/9
W5(-1/-2): 27/31
OLD: 137
Axle Length: 195
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd.
contact us
  • Submit and send
WHAT SETS US APART
  • Powerful rear-drive hub motor, with 7-speed rotary flywheel, 135mm gear opening, higher adaptability, and rated power up to 750w.

  • Patented plastic steel gear: 5 times the torque of nylon gear; life span greater than 40,000 kilometers; lower after-sales

  • Stall torque up to 85NM, specially designed for eMTB/Cargo.

WHO ARE WE More than 20 years of production experience.

Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. was established in 1995. For more than 20 years, we have been committed to the casting and processing of miniature DC motors, hub motors for electric vehicles and motorcycles, and aluminum and magnesium alloys for electric vehicles. At the same time, we have a complete ISO9001 quality control system, mature management system and advanced manufacturing and testing equipment.

HENTACH has an area of more than 9,000 square meters, with a construction area of 5,000 square meters. Currently we have more than 60 sets of various internal production equipment including 500 tons die-casting machines, precision CNC machine tools, laser marking machines, micro-arc oxidation, etc., and another two sets of electric vehicle motor test benches.

HENTACH aims to pursue higher quality and innovation products. With rich experience in motor manufacturing, we are confident with our motor quality as we always use the materials and our own patented nylon-steel gear. We used to set up a price for the customers who use our motors for over 30,000 miles. In the end we find over 50 motors that are used by the customers for over 30,000 miles and some of them even reach 50,000 miles. We appreciate for those customers who are always trust our products, which also encourage us to keep exploring and innovating better motor with  quality.
