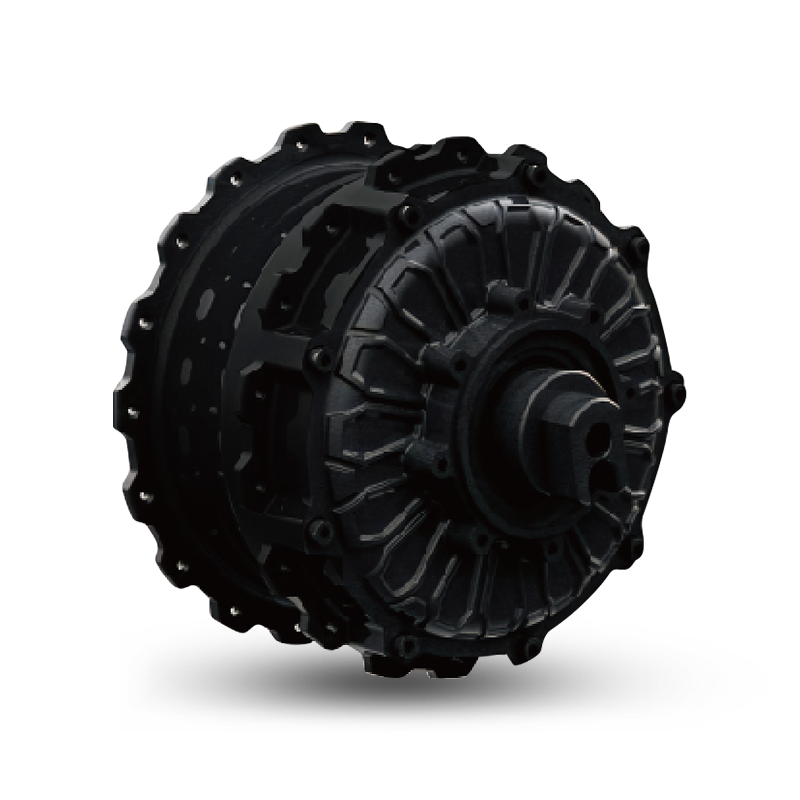

S-TYPE Max THRU AXLE Rear Hub Motor

The S-TYPE Max thru-axle motor is designed for E-Fat, Moped, and Cargo applications, featuring a 190mm dropout and a standard 12mm thru-axle structure. Under a 60V system, it achieves a rated power of 2000W and a peak torque of over 170Nm, delivering powerful acceleration for steep slopes and complex terrains. Equipped with HENTACH's patented plastic-steel gears, it offers five times the torque capacity of traditional nylon gears, lasting over 40,000 km and significantly reducing maintenance costs. In e-bike applications over 1000W, only Hengtai's plastic-steel gears can withstand continuous torques above 100Nm.

Key Parameter
Motor structure: Rated Voltage(V): Rated Power(W):
Rear-Drive Hub Motor 1000-2000 48-72
Peak Torque(N.m.): Weight(KG): OLD (mm):
160 7.9 190
detail information
  • S-TYPE Max THRU AXLE Rear Hub Motor
  • S-TYPE Max THRU AXLE Rear Hub Motor
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Product Parameters Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Drawing Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. Contact Us

Core Data

Rated power 1000-2000
Rated voltage 48-72
Wheel diameter 20-26
Speed range 35-65
Maximum torque 160
Gear Ratio 5.27
Weight (KG) 7.9

Installation Parameters

Brake Disc Brake
Torque sensor cassette  No
Cabling Route Axle Side Left
Spoke hole 2-18-Ф3.2
Waterproof rating IP54(Up to IP65)
Flywheel/Sprocket wheel Cassette 7-12speed/Cassette 7-12speed
Certificates TUV/EN15194/RoHS

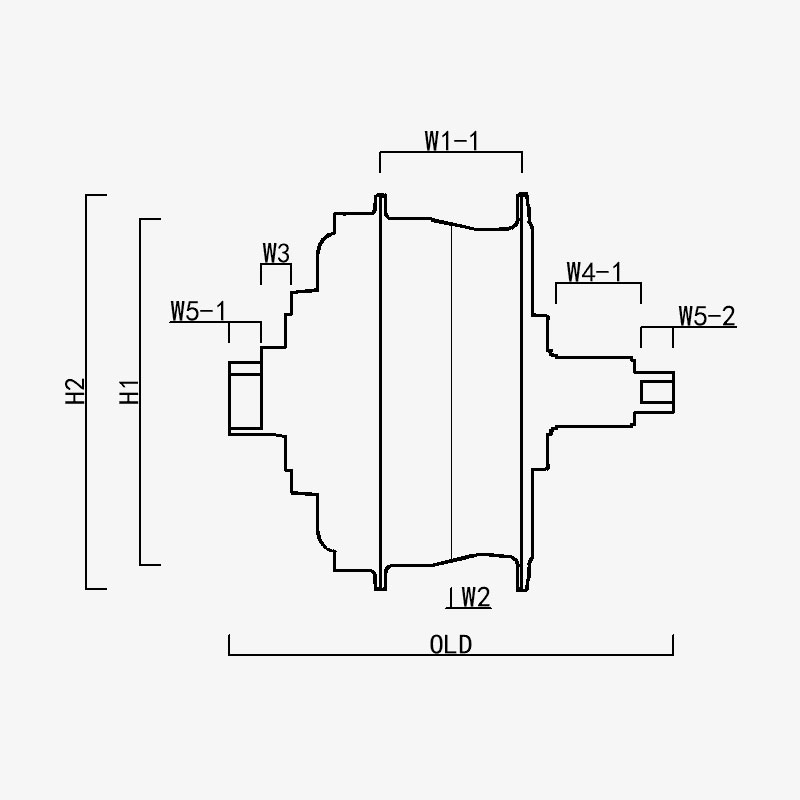

H1/ OD: 173.4
H2/Motor OD: 198.4
W1(-1/-2): 70.8
W2: 0
W3: 15.25
W4(-1/-2): 42.5
W5(-1/-2): 16
OLD: 190
Axle Length: 222
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd.
contact us
  • Submit and send
WHAT SETS US APART
  • Patented plastic-steel gear: 5 times the torque of nylon gear; life span greater than 40,000 km; lower after-sales service

  • Standard 10mm barrel axle structure, 190mm gear opening

  • Can achieve >170NM torque. Stronger performance, a power experience that can only be felt when using plastic-steel gears.

WHO ARE WE More than 20 years of production experience.

Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. was established in 1995. For more than 20 years, we have been committed to the casting and processing of miniature DC motors, hub motors for electric vehicles and motorcycles, and aluminum and magnesium alloys for electric vehicles. At the same time, we have a complete ISO9001 quality control system, mature management system and advanced manufacturing and testing equipment.

HENTACH has an area of more than 9,000 square meters, with a construction area of 5,000 square meters. Currently we have more than 60 sets of various internal production equipment including 500 tons die-casting machines, precision CNC machine tools, laser marking machines, micro-arc oxidation, etc., and another two sets of electric vehicle motor test benches.

HENTACH aims to pursue higher quality and innovation products. With rich experience in motor manufacturing, we are confident with our motor quality as we always use the materials and our own patented nylon-steel gear. We used to set up a price for the customers who use our motors for over 30,000 miles. In the end we find over 50 motors that are used by the customers for over 30,000 miles and some of them even reach 50,000 miles. We appreciate for those customers who are always trust our products, which also encourage us to keep exploring and innovating better motor with  quality.
